Coil
AE 23-800
Bally/Williams

Description

Common solenoid coil used on many brands of pinball machines
No diode. All coils come with new sleeves (coil tubing) where applicable

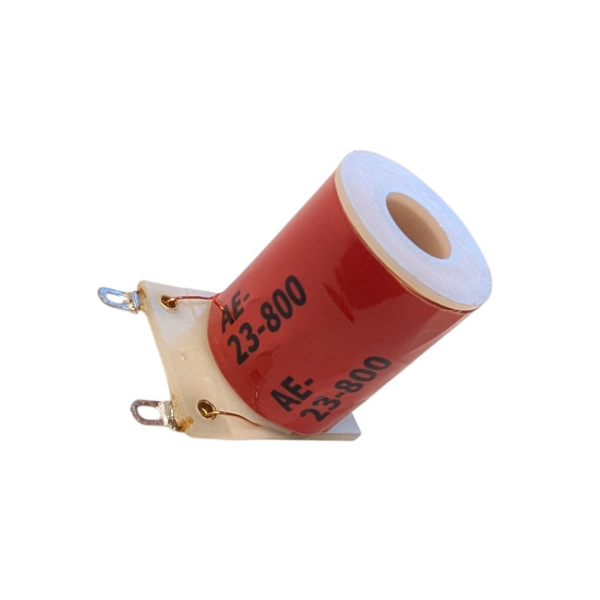

Bally/Williams AE 23-800 Coil

High Quality from a factory that specializes in pinball coils
Correct Coil Sleeve included

• Wire gauge: 23awg
  Turns: 800
  Resistance: ~4.2 Ω (no diode)

Reference

• Bally/Williams AE 23-800
• Barrels of Fun
• Chicago Gaming Company PIN-AE-23800
• Data East/SEGA/Stern  090-5001-00,  090-5001-ND, no diode 090-5001-00 equivalent plus diode 1N4004
• Data East/SEGA/Stern  090-5001-ND
• Data East/SEGA/Stern  No diode 090-5001-00 equivalent plus diode 1N4004
• Jersey Jack Pinball 23-0003-00
• Jersey Jack Pinball 23-000003-00
• Spooky Pinball 23-800 ND

SPF reference

• • SPF 84-AE23800BW
